GATE CSE 2020 Q14: Order of micro-steps for R0 ← R1 + R2 on a single-bus datapath

Question

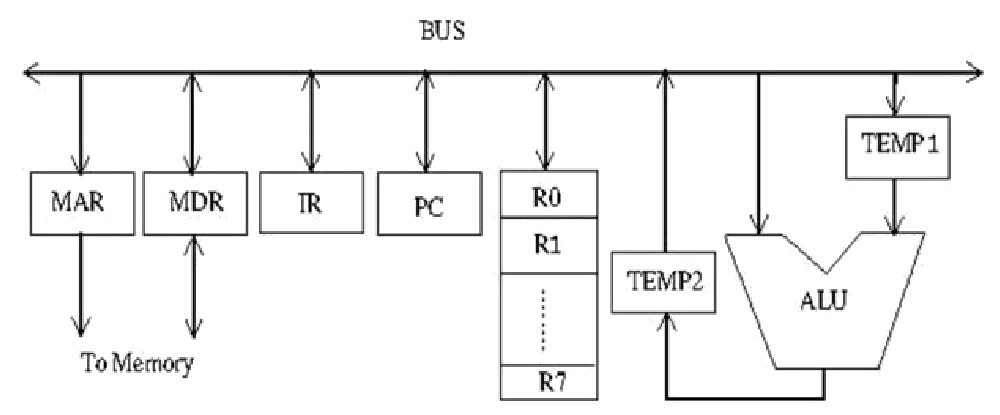

Consider the following data path diagram.

Single-bus datapath: MAR and MDR connect to memory; IR, PC, registers R0 to R7, TEMP1 feeding one ALU input, the bus feeding the other ALU input, and the ALU output going to TEMP2, which drives the bus
Tap the figure to enlarge

Consider an instruction: R0 ← R1 + R2. The following steps are used to execute it over the given data path. Assume that PC is incremented appropriately. The subscripts r and w indicate read and write operations, respectively.

1. R2r\text{R2}_r, TEMP1r\text{TEMP1}_r, ALUadd\text{ALU}_{add}, TEMP2w\text{TEMP2}_w

2. R1r\text{R1}_r, TEMP1w\text{TEMP1}_w

3. PCr\text{PC}_r, MARw\text{MAR}_w, MEMr\text{MEM}_r

4. TEMP2r\text{TEMP2}_r, R0w\text{R0}_w

5. MDRr\text{MDR}_r, IRw\text{IR}_w

Which one of the following is the correct order of execution of the above steps?

Try it: multiple choice: exactly one correct option

Select one option
Wrong answer costs 1/3 mark in GATE.
Show answer and explanation

Answer: C (official GATE 2020 final answer key)

Concept used: Instruction fetch comes first, then operand transfers through the temporary registers, then write-back.

First step: Fetch is PC to MAR with a memory read (step 3), then MDR to IR (step 5); TEMP1 must be loaded before the ALU adds.

Full step-by-step solution

Detailed working, common mistakes and linked mock tests will be available with a free GATEiit account. Log-in is coming soon.

Share this question

WhatsAppDownload image

Source: official GATE 2020 CS question paper and final answer key, organised by IIT Delhi. Question paper · Answer key
