GATE CSE 2024 Session 1 Q28: Glitches in Y = X AND NOT X with gate delays

Question

Consider the circuit shown below where the gates may have propagation delays. Assume that all signal transitions occur instantaneously and that wires have no delays. Which of the following statements about the circuit is/are CORRECT?

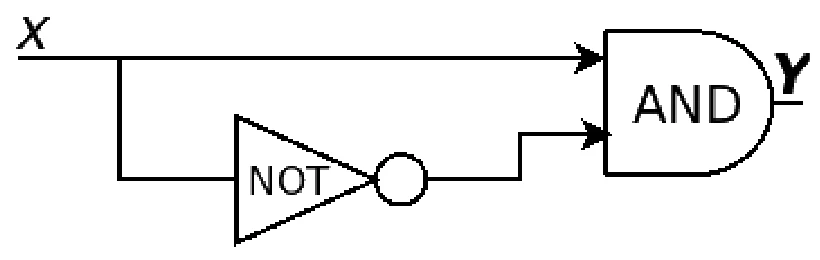

Input X goes directly to one input of an AND gate and, through a NOT gate, to the other input; the AND output is Y
Tap the figure to enlarge

Try it: multiple select: one or more correct options

Select one or more options
Select all correct options. No negative marking, no partial marks.
Show answer and explanation

Answer: A, C (official GATE 2024 final answer key)

Concept used: Static hazard: X⋅X‾=0X \cdot \overline{X} = 0 ideally, but the NOT gate's delay can briefly let both inputs be 1.

First step: Trace both AND inputs just after X rises from 0 to 1, while the NOT output still shows the old value.
