GATE CSE 2025 Session 1 Q60: Cycle length of a 4-flip-flop twisted ring counter

Question

Consider the given sequential circuit designed using D-Flip-flops. The circuit is initialized with some value (initial state). The number of distinct states the circuit will go through before returning back to the initial state is _________. (Answer in integer)

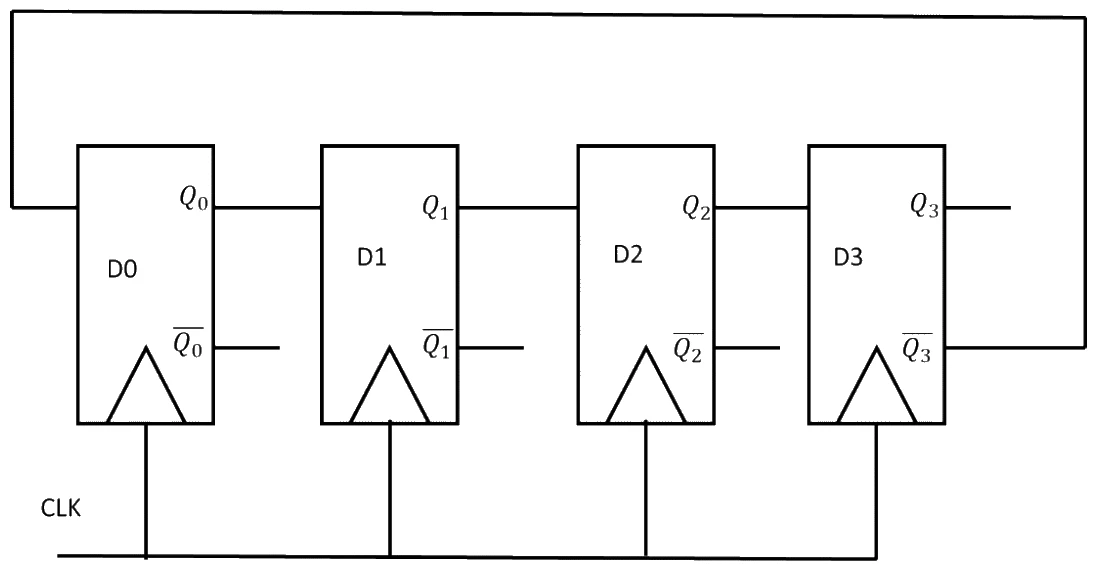

Four D flip-flops D0 to D3 on a common clock; Q0 feeds D1, Q1 feeds D2, Q2 feeds D3, and the complemented output of D3 (Q3 bar) is fed back to the input of D0
Tap the figure to enlarge

Try it: numerical answer: type the value

Numerical answer. No negative marking.
Show answer and explanation

Answer: 7 to 8 (official GATE 2025 final answer key)

Concept used: A shift register with the inverted last output fed back is a Johnson (twisted ring) counter, which cycles through 2n2n states.

First step: Start from 0000 and clock it: the inverted Q3 shifts in, giving 1000, 1100, 1110, 1111, 0111, … until it returns to 0000.
