GATE CSE 2021 Set 1 Q38: Next three states of a 3-bit T flip-flop counter

Question

Consider a 3-bit counter, designed using T flip-flops, as shown below:

Assuming the initial state of the counter given by PQR as 000, what are the next three states?

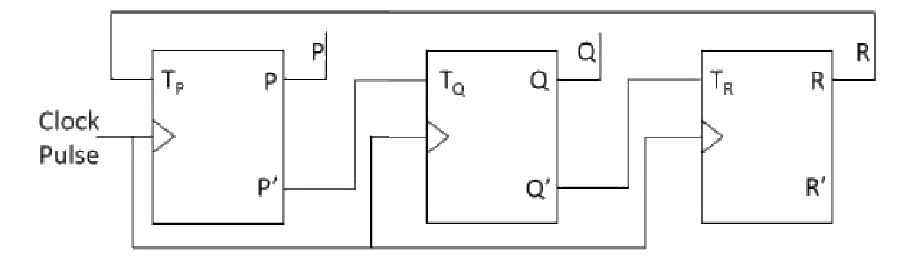

Three T flip-flops P, Q and R sharing a common clock pulse. T_P is fed from R, T_Q from P' (the complement of P), and T_R from Q', with outputs P, Q, R taken from the flip-flops
Tap the figure to enlarge

Try it: multiple choice: exactly one correct option

Select one option
Wrong answer costs 2/3 mark in GATE.
Show answer and explanation

Answer: A (official GATE 2021 final answer key)

Concept used: A T flip-flop toggles when T=1T = 1; all flip-flops are clocked together, so evaluate every TT input from the present state.

First step: Read off the wiring: TP=RT_P = R, TQ=P′T_Q = P', TR=Q′T_R = Q'. From 000, find which flip-flops toggle.
