GATE DA 2025 Q8: Dodecagon triangles rearranged into squares of side r

Question

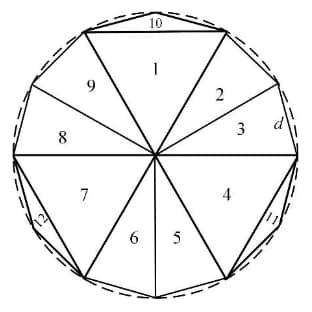

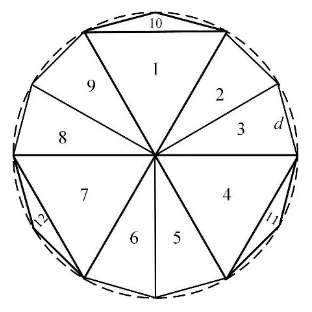

A regular dodecagon (12-sided regular polygon) is inscribed in a circle of radius rr cm as shown in the figure. The side of the dodecagon is dd cm. All the triangles (numbered 1 to 12) in the figure are used to form squares of side rr cm and each numbered triangle is used only once to form a square.

The number of squares that can be formed and the number of triangles required to form each square, respectively, are:

Note: The figure shown is representative.

A regular dodecagon inscribed in a dashed circle, divided into 12 numbered triangles; one side is labelled d.
Tap the figure to enlarge

Try it: multiple choice: exactly one correct option

Select one option
Wrong answer costs 2/3 mark in GATE.
Show answer and explanation

Answer: A (official GATE 2025 final answer key)

Concept used: Area of a regular dodecagon inscribed in a circle of radius r is 3r23r^2.

First step: The dodecagon's area is 12×12r2sin⁡30∘=3r212 \times \tfrac12 r^2 \sin 30^\circ = 3r^2, while each square has area r2r^2. Compare the two areas.

Full step-by-step solution

Detailed working, common mistakes and linked mock tests will be available with a free GATEiit account. Log-in is coming soon.

Share this question

WhatsAppDownload image

Source: official GATE 2025 DA question paper and final answer key, organised by IIT Roorkee. Question paper · Answer key
