GATE DA 2025 Q43: Alpha-beta pruning: ranges of x and y

Question

Consider game trees Tree-1 and Tree-2 as shown. The first level is a MAX agent and the second level is a MIN agent. The value in the square node is the output of the utility function.

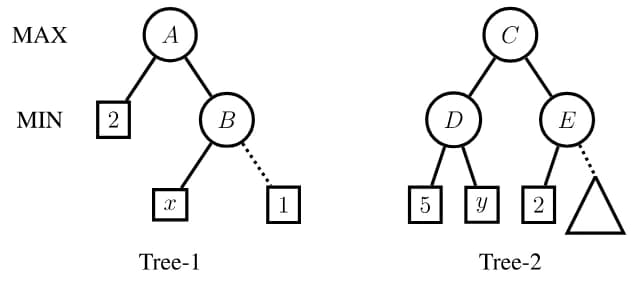

Tree-1: MAX root A with children: a leaf of value 2 and MIN node B, whose children are leaf x and leaf 1 (dotted edge). Tree-2: MAX root C with MIN children D (leaves 5 and y) and E (leaf 2 and a subtree on a dotted edge).
Tap the figure to enlarge

For what ranges of xx and yy, the right child of node BB and the right child of node EE will be pruned by alpha-beta pruning algorithm?

Try it: multiple choice: exactly one correct option

Select one option
Wrong answer costs 2/3 mark in GATE.
Show answer and explanation

Answer: C (official GATE 2025 final answer key)

Concept used: Alpha-beta pruning: a MIN node is cut off once its value falls to or below the MAX player's best so far (alpha).

First step: In Tree-1, MAX already has 2 from the left leaf, so α=2\alpha = 2. Node B can stop as soon as its running minimum, xx, is at most 2.

Full step-by-step solution

Detailed working, common mistakes and linked mock tests will be available with a free GATEiit account. Log-in is coming soon.

Share this question

WhatsAppDownload image

Source: official GATE 2025 DA question paper and final answer key, organised by IIT Roorkee. Question paper · Answer key
