GATE CSE 2025 Session 1 Q21: Effect of inserting 23 into a full B+ tree

Question

Consider the following B+B^+ tree with 5 nodes, in which a node can store at most 3 key values. The value 23 is now inserted in the B+B^+ tree. Which of the following option(s) is/are CORRECT?

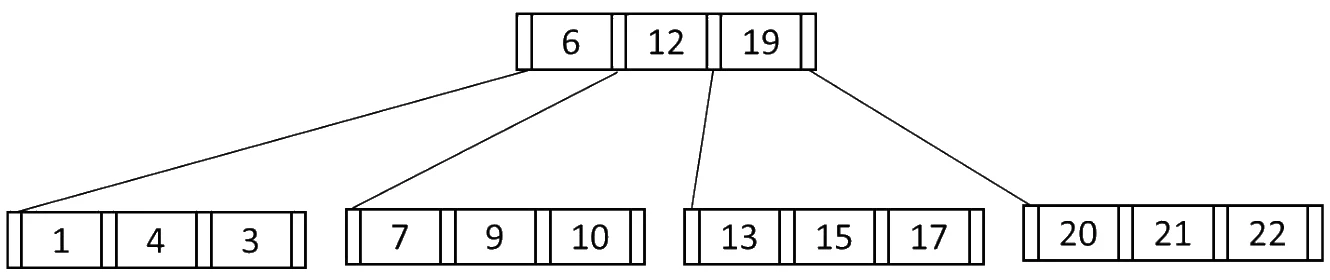

B+ tree: root with keys 6, 12, 19 and four leaves with keys (1, 4, 3), (7, 9, 10), (13, 15, 17) and (20, 21, 22)
Tap the figure to enlarge

Try it: multiple select: one or more correct options

Select one or more options
Select all correct options. No negative marking, no partial marks.
Show answer and explanation

Answer: B, D (official GATE 2025 final answer key)

Concept used: B+ tree insertion: a full leaf splits and pushes a key up; a full parent splits in turn.

First step: 23 goes into the last leaf (20, 21, 22), which is already full, so it splits and sends a key to the root, which is also full.

Full step-by-step solution

Detailed working, common mistakes and linked mock tests will be available with a free GATEiit account. Log-in is coming soon.

Share this question

WhatsAppDownload image

Source: official GATE 2025 Session 1 CS question paper and final answer key, organised by IIT Roorkee. Question paper · Answer key
