GATE CSE 2022 Q22: Number of subnets in an enterprise network with three routers

Question

Consider an enterprise network with two Ethernet segments, a web server and a firewall, connected via three routers as shown below.

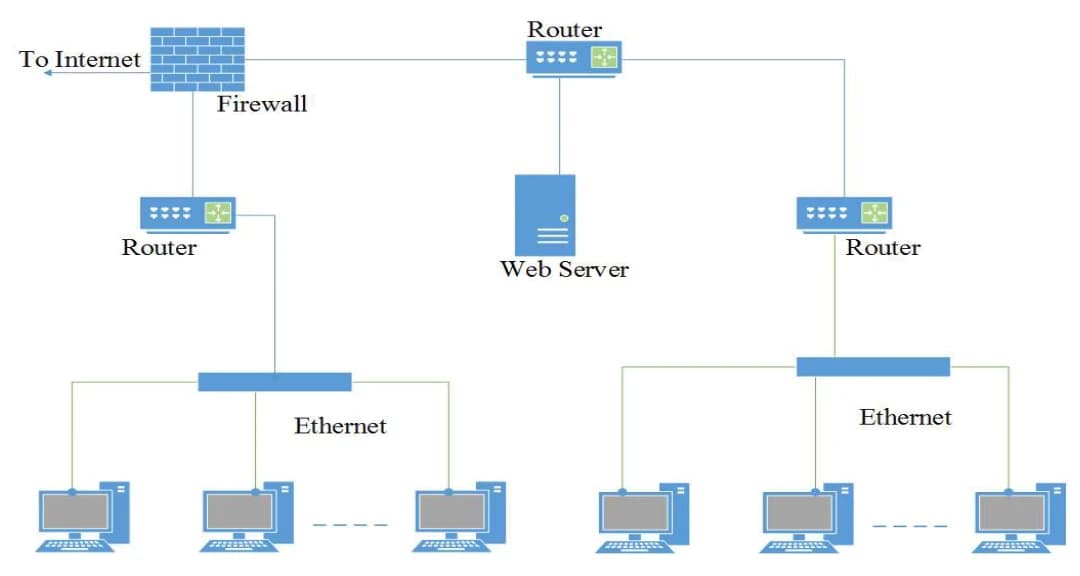

A firewall connected to the Internet, to a top router and to a left router; the top router connects to the web server and to a right router; the left and right routers each connect to an Ethernet segment with several computers
Tap the figure to enlarge

What is the number of subnets inside the enterprise network?

Try it: multiple choice: exactly one correct option

Select one option
Wrong answer costs 1/3 mark in GATE.
Show answer and explanation

Answer: C (official GATE 2022 final answer key)

Concept used: Routers separate subnets: each router interface (each link between routers/firewall or to a LAN) is its own subnet.

First step: Count every distinct link segment bounded by router or firewall interfaces inside the enterprise, including the two Ethernet LANs and the web server link.

Full step-by-step solution
